Valuables Management

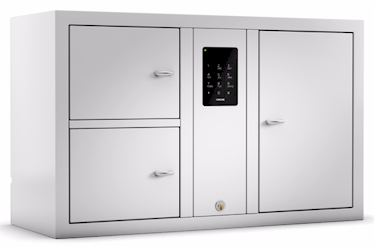

Creone ValueBox Basic 7003B
ValueBox basic cabinet from Creone
The ValueBox 7003B with 3 storage compartments. Key pad for entering codes and programming. Can be expanded using up to 15 value boxes from the Expansion range. Single power connection (230V).
Accessories:
Battery backup
Technical Specifications
Basic 7003B
| Number of doors/compartments |
3 |
| Max. number key hooks/spaces |
- |
| Max. number users/codes |
500/Door |
| Max. number accesses |
- |
| Can be connected to alarm |
- |
| Can be connected to card reader |
- |
| Battery backup |
Accessories |
| Display, number of rows/characters |
- |
| Memory |
256B |
| Clock |
- |
| Time zones |
- |
| Setting blocking function |
YES |
| Setting magnetic time for compartment |
YES |
| Double code |
- |
| Can be connected to KeyWin S |
- |
| Requires KeyWin SC |
- |
| Max. number of expansion cabinets |
15 Cabinets |
| Expandable using multiple main cabinets |
- |
| Exterior dimensions |
745x460x284 |
| Weight |
20 kg |
| Voltage, 100/230V 50-60 hz |
YES |
| Power consumption, max. 35W/0.15A |
YES |
| Power consumption, max. 65W/0.3A |
- |
| Control unit, microprocessor |
YES |
| Memory for codes |
eeprom |
| Lock, electromagnetic 12V |
YES |
| Cabinet material, steel |
1,5 mm |
| Exterior finish, brushed stainless steel |
- |
| Exterior finish, weather resistant powder coating |
YES |
| Internal Dimensions 7000 Series locker 1 |
260x400x255 |
| Internal Dimensions 7000 Series locker 2 |
260x200x255 |
| Internal Dimensions 7000 Series locker 3 |
260x125x255 |
| Number of doors/compartments |
3 |
| Max. number key hooks/spaces |
- |
| Max. number users/codes |
500/Door |
| Max. number accesses |
- |
| Can be connected to alarm |
- |
| Can be connected to card reader |
- |
| Battery backup |
Accessories |
| Display, number of rows/characters |
- |
| Memory |
256B |
| Clock |
- |
| Time zones |
- |
| Setting blocking function |
YES |
| Setting magnetic time for compartment |
YES |
| Double code |
- |
| Can be connected to KeyWin S |
- |
| Requires KeyWin SC |
- |
| Max. number of expansion cabinets |
15 Cabinets |
| Expandable using multiple main cabinets |
- |
| Exterior dimensions |
745x460x284 |
| Weight |
20 kg |
| Voltage, 100/230V 50-60 hz |
YES |
| Power consumption, max. 35W/0.15A |
YES |
| Power consumption, max. 65W/0.3A |
- |
| Control unit, microprocessor |
YES |
| Memory for codes |
eeprom |
| Lock, electromagnetic 12V |
YES |
| Cabinet material, steel |
1,5 mm |
| Exterior finish, brushed stainless steel |
- |
| Exterior finish, weather resistant powder coating |
YES |
| Internal Dimensions 7000 Series locker 1 |
260x400x255 |
| Internal Dimensions 7000 Series locker 2 |
260x200x255 |
| Internal Dimensions 7000 Series locker 3 |
260x125x255 |
