Valuables Management

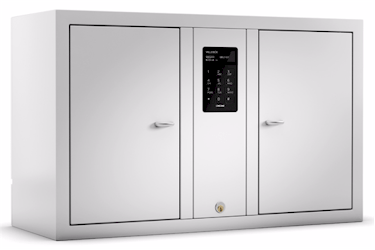

Creone ValueBox System 7002S
ValueBox System cabinet from Creone
The ValueBox 7002S with 2 storage compartments. Display with simple menu navigation and programming. Can be expanded using up to 15 value boxes from the Expansion range. Administration can be performed using the KeyWin Light PC program. Can be connected to an external alarm and also be connected to a card reader. Single power connection (230V).
Accessories:
Battery backup
Alarm contacts
Buzzer
Expansion card for alarm, card reader and KeyWin Light
Facade mounting set
Technical Specifications
System 7002S
| Number of doors/compartments |
2 |
| Max. number key hooks/spaces |
- |
| Max. number users/codes |
500 |
| Max. number accesses |
3600 |
| Can be connected to alarm |
YES |
| Can be connected to card reader |
YES |
| Battery backup |
Accessories |
| Display, number of rows/characters |
4x20 |
| Memory |
128kb |
| Clock |
YES |
| Time zones |
YES |
| Setting blocking function |
YES |
| Setting magnetic time for compartment |
YES |
| Double code |
YES |
| Can be connected to KeyWin S |
YES |
| Requires KeyWin SC |
- |
| Max. number of expansion cabinets |
15 Cabinets |
| Expandable using multiple main cabinets |
YES |
| Exterior dimensions |
745x460x284 |
| Weight |
20 kg |
| Voltage, 100/230V 50-60 hz |
YES |
| Power consumption, max. 35W/0.15A |
YES |
| Power consumption, max. 65W/0.3A |
- |
| Control unit, microprocessor |
YES |
| Memory for codes |
eeprom |
| Lock, electromagnetic 12V |
YES |
| Cabinet material, steel |
1,5 mm |
| Exterior finish, brushed stainless steel |
- |
| Exterior finish, weather resistant powder coating |
YES |
| Internal Dimensions 7000 Series locker 1 |
260x400x255 |
| Internal Dimensions 7000 Series locker 2 |
260x200x255 |
| Internal Dimensions 7000 Series locker 3 |
260x125x255 |
| Number of doors/compartments |
2 |
| Max. number key hooks/spaces |
- |
| Max. number users/codes |
500 |
| Max. number accesses |
3600 |
| Can be connected to alarm |
YES |
| Can be connected to card reader |
YES |
| Battery backup |
Accessories |
| Display, number of rows/characters |
4x20 |
| Memory |
128kb |
| Clock |
YES |
| Time zones |
YES |
| Setting blocking function |
YES |
| Setting magnetic time for compartment |
YES |
| Double code |
YES |
| Can be connected to KeyWin S |
YES |
| Requires KeyWin SC |
- |
| Max. number of expansion cabinets |
15 Cabinets |
| Expandable using multiple main cabinets |
YES |
| Exterior dimensions |
745x460x284 |
| Weight |
20 kg |
| Voltage, 100/230V 50-60 hz |
YES |
| Power consumption, max. 35W/0.15A |
YES |
| Power consumption, max. 65W/0.3A |
- |
| Control unit, microprocessor |
YES |
| Memory for codes |
eeprom |
| Lock, electromagnetic 12V |
YES |
| Cabinet material, steel |
1,5 mm |
| Exterior finish, brushed stainless steel |
- |
| Exterior finish, weather resistant powder coating |
YES |
| Internal Dimensions 7000 Series locker 1 |
260x400x255 |
| Internal Dimensions 7000 Series locker 2 |
260x200x255 |
| Internal Dimensions 7000 Series locker 3 |
260x125x255 |
